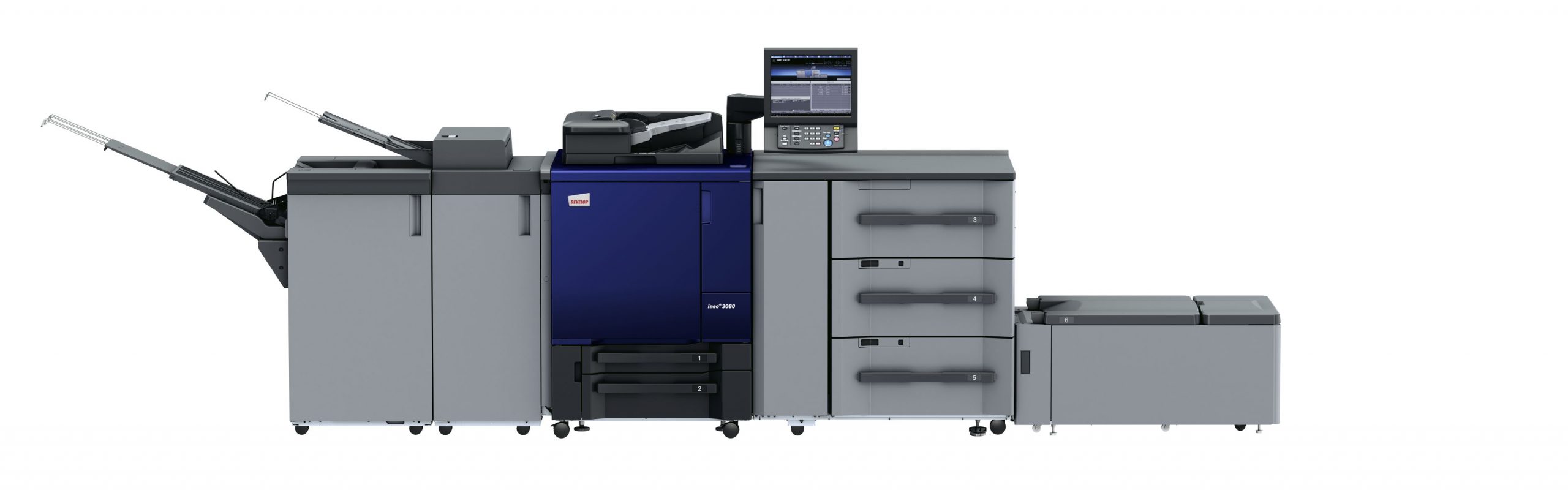

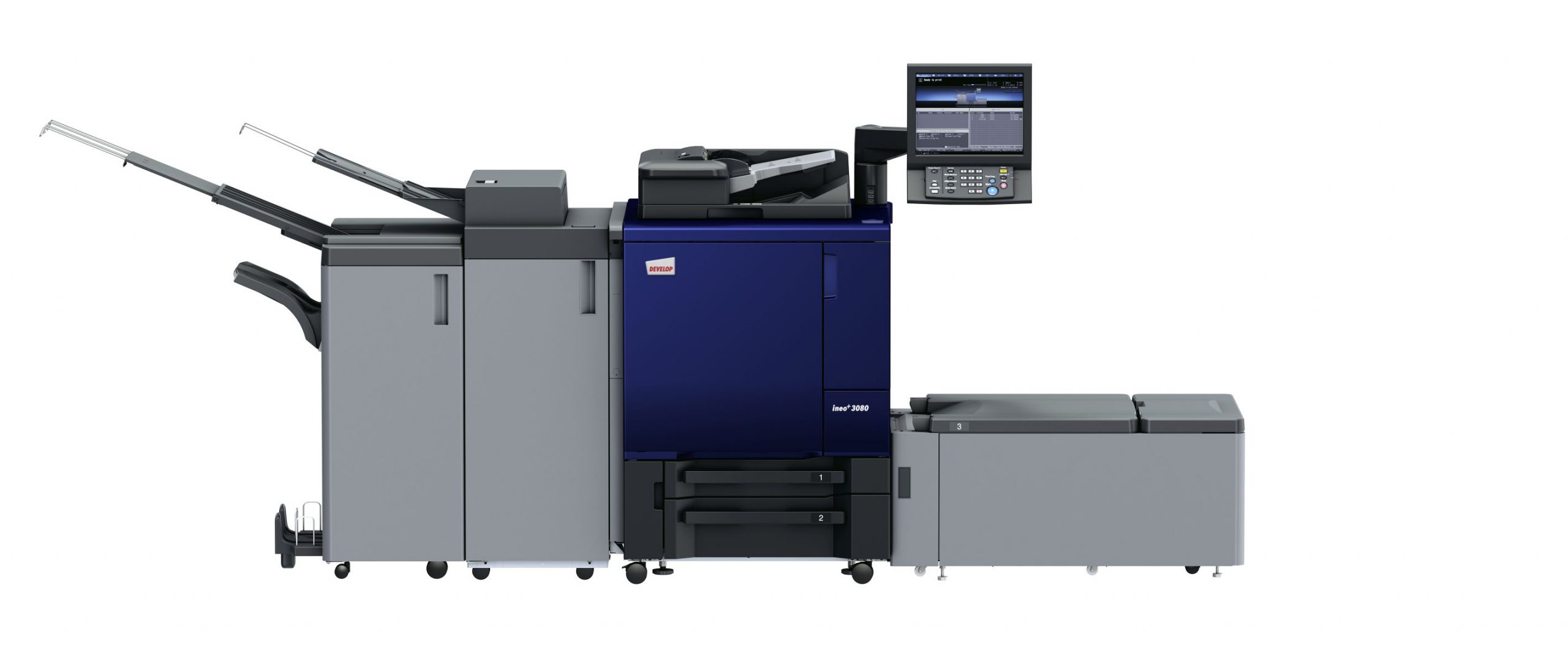

Ψηφιακή Έγχρωμη Πρέσα Develop Ineo +3080
Description
- Quality output with amazing imaging capabilities
- High-speed colour printing
- Flexible choice of controller technologies
- Handles a broad range of media (up to 350 g/sqm)
- Wide variety of finishing options
Functionality
- High-speed envelope printing from new banner tray
- Automatic density balance adjustment
- Simplex banner printing on a length of up to 1,200 mm and duplex on up to up to 762 mm
- Document scanning with a speed of up to 240 ipm
- Connectivity with third party applications due to OpenAPI
- Hotfolder printing
Media
- Standard: 1,500 sheets (62-256gsm)
- Optional: Up to 15,390 sheets
Finishing
- Stapling
- Large-capacity stacking (trolley-based)
- Auto-shift sorting and grouping
- Punching (2 and 4 holes)
- Multi (GBC) punching
- Auto ring binding
- Numerous folding modes
- Post insertion
- Booklet making
- Trimming
- Perfect binding
Περιγραφή
Printer specifications
Print speed A4 | 81 ppm |
---|---|
Print speed A3 | 45 ppm |
Print speed SRA3 | 39 ppm |
Print speed / hour | A4: 4,399 pph A3: 2,439 pph SRA3: 2,058 pph |
Print resolution | 1,200 x 1,200 dpi x 8 bit; 1,200 x 3,600 dpi equivalent |
Gradations | 256 gradations |
System specifications
Paper weight | 62-350 gsm |
---|---|
Duplex unit | Non-stack type; 62-350 gsm |
Paper sizes | 330 x 487 mm; 330 x 1.300 mm (optional) |
Maximum image area | 323 x 480 mm 323 x 1,295 mm (Banner) |
Maximum paper input capacity | 15,390 sheets |
Maximum paper output capacity | 13,600 sheets |
Main unit dimensions (W x D x H) | 800 x 903 x 1,076 mm 800 x 903 x 1,041 mm (P-version) |
Main unit weight | 319 kg 312 kg (AccurioPress C3080P) |
Scanner specifications
Scan speed A4 | Up to 240 ipm |
---|---|
Scan resolution | 600 x 600 dpi |
Scan modes | TWAIN scan; Scan-to-HDD; Scan-to-FTP; Scan-to-SMB; Scan-to-eMail |
Scan formats | PDF, Secured PDF, Compact PDF, TIFF, JPEG, XPS, PDF/A-1a,1b |
Copier specifications
Gradations | 256 gradations |
---|---|
FCOT | Less than 8 sec. (colour A4) |
Magnification | 25 – 400 % in 0.1 % steps |
Multiple copies | 1 – 9,999 |
Accessories
Original Cover | OC-511 Original Cover |
---|---|
Integrated Color Care Unit | IQ-501 Automatic colour adjustment Automatic front to back registration Real time colour adjustment on the fly Real time registration adjustment on the fly Hands free printer profiling Colour Validation |
Envelope fusing unit | EF-103 Dedicated Envelope fuser |
Working table | WT-511 Working table WT-511 to be placed aboved LU-202m/XL/XLm |
Automatic document feeder | DF-706 Dual color scan document feeder |
Large capacity tray | LU-202m 1 magazines air assist feeding Paper capacity: up to 2,500 sheets LU-202XLm (Banner) 1 magazines envelope and banner support air assist feeding Paper capacity: up to 2,500 sheets |
Multi bypass tray | MB-506 1 magazines Up to 350 gsm Paper capacity: up to 250 sheets MB-508 Multi Bypass Tray for PF-707m allows feeding max. 1,300mm banner paper. |
Paper feed unit | PF-602m 2 magazines Paper capacity: up to 6000 sheets PF-707m 3 magazines; air suction feeding Paper capacity: up to 4,630 sheets |
Heating unit | HT-511 Dehumidifying heater for standard trays HT-504 Dehumidifying heater for PF-602m HT-506 Dehumidifying heater for PF-710 HT-503 Dehumidifying heater for LU-202m/XL/XLm |
Folding and punching unit | FD-503 Pre-printed sheet insertion (PI), 2 PI trays for 500 sheets each, punching (2 and 4 hole), folding (half-fold, z-fold, gate-fold, letter fold in, letter fold out, double-parallel-fold), sub tray for up to 200 sheets |
Output Tray | OT-511 Output tray OT-511 for a capacity up to 150 sheets |
Relay unit | RU-518 Mechanical decurling Output feedback system for automatic calibration Optional: Humidifier RU-510 Sheet reverser; adapts processing speed to 125 ppm |
Multi (GBC) punching unit | GP-501 Multi punching of A4 sheets User replaceable die sets for: velo bind, plastic comb, wire bind, colour coil, pro click Paper weight: 75 – 216 gsm |
Auto ring binder | GP-502 Stacking, punching and binding of books, up to 102 sheets self-adjusting bind elements (one size fits all); paper weight: content 75-120 gsm; cover 163-216 gsm |
Booklet making unit | SD-506 Booklet making of up to 50 sheets (200 images), saddle stitching, trimming, output tray for up to 50 booklets, multi letter fold in (up to 5 sheets), multi half fold (up to 5 sheets) SD-513 Plockmatic SD-500/SD-350 |
Creasing unit | CR-101 Creasing unit for SD-513 |
Slitting unit | TU-504 Trimming unit for SD-513 |
Spine corner forming unit | FD-504 Spine corner forming unit for SD-513 |
Stacking unit | LS-506 Up to 5,000 sheets stacking capacity, trolley mounted stacker, auto-shift stacking, sub tray for up to 200 sheets, paper clamp mechanism |
Perfect binding unit | PB-503 Hot melt glue binding system Integrated 1-side trimming of cover sheets Books from A5 up to A4+ (307 x 221 mm) Books from 10 sheets up to 30 mm spine width Cover paper tray for up to 1,000 sheets Sub tray for up to 200 sheets Book stacking capacity of up to 3,300 sheets 2 stacks |
Stapling unit | FS-532 Stapling of up to 100 sheets; two-point and corner stapling; variable staple length (cutting mechanism); output for up to 4,200 sheets (A4); sub tray for up to 200 sheets; auto-shift sorting and grouping FS-531 2-point and corner stapling, stapling up to 50 sheets, auto-shift sorting and grouping, output for up to 3,000 sheets, sub tray forup to 100 sheets |
Saddle stitching kit | SD-510 Booklet making of up to 20 sheets (80 images) Saddle stitching cover sheets up to 300 gsm output tray for booklets multi-letter fold-in (up to 5 sheets) multi-half-fold (up to 5 sheets) |
Post inserter | PI-502 Insertion of preprinted sheets; PI trays for 200 sheets each |
Punch kit | PK-522 Punching (2 and 4 holes selectable) |
Humidifier unit | HM-103 Humidifier unit HM-103 |
Banner tray | MK-740 Banner Kit for FS-612, FS-531 or RU-518 |
Open Stacker | OT-510 Output for up to 4,200 sheets (A4) Sub tray for up to 300 sheets Auto-shift sorting and grouping Sub tray for up to 200 sheets |
Envelop Kit | MK-746 Envelope Kit for LU-202m/XL/XLm |
IC-605
Controller specifications
Type | IC-605 internal Konica Minolta own Controller |
---|---|
CPU | For C3080/C3080P/C3070 Intel Core i5 4570S 2.9GHz For C3070L Intel Pentium G3420 3.2GHz |
RAM | Up to 20GB |
HDD | 3 TB (standard) up to 3.5 TB (optional) |
Interface | Ethernet (10/100/1000-Base-T) |
File formats | PostScript3 (CPSI3020) PDF Ver.1.7 TIFF Ver.6 compliant PPML Ver.2.2 PCL5c compatible PCL XL (PCL6 Ver.3) compatible APPE Ver.4.2 PDF/VT Ver.2 |
Client environments | Windows 7, 8.1, 10 Windows Server 2008 (R2), 2012 (R2), 2016 (incl. 64bit version) MacOSX 10.8-10.14 |
IC-417
Controller specifications
Type | IC-417 internal EFI Controller |
---|---|
CPU | Intel Celeron G8120 2.7GHz |
RAM | 2GB high-speed memory |
HDD | 500 GB |
Interface | Ethernet (10/100/1000-Base-T) |
File formats | Adobe® PostScript Ver. 3(CPSI3020) Adobe® PDF Ver.1.7 PCL(5,6) emulation |
Client environments | Windows® Vista/ 7/ 8.1/ 10 Windows® Server 2008/2012 MacOS 10.8-10.10 |
IC-313
Controller specifications
Type | IC-313 external EFI Controller |
---|---|
CPU | Intel Core i5 4570S 2.9GHz |
RAM | 4GB high-speed memory |
HDD | 1TB |
Interface | Ethernet (10/100/1000-Base-T) |
File formats | Adobe® PostScript Ver. 3(CPSI3020) Adobe® PDF Ver.1.7 APPE Ver.3.0 PCL(5,6) emulation |
Client environments | Windows® Vista/ 7/ 8.1/ 10 Windows® Server 2008/2012 MacOS 10.8-10.10 |
IC-314
Controller specifications
Type | IC-314 external Creo Controller |
---|---|
CPU | Intel Core i7-4790S 3.2GHz |
RAM | 12GB |
HDD | 3 TB |
Interface | Ethernet (10/100/1000-Base-T) |
File formats | Adobe® PostScript Ver.3(CPSI3020) Adobe® PDF Ver.1.7 APPE Ver.3.4 PPML Ver.2.2 PPML/VDX Creo VPS Optimized PS Adobe® PDF/VT2 |
Client environments | Windows® Vista/ 7/ 8.1/ 10 Windows® Server 2008/2012 MacOS 10.8-10.10 |
- All specifications refer to A4-size paper of 80 gsm quality.
- The support and availability of the listed specifications and functionalities varies depending on operating systems, applications and network protocols as well as network and system configurations.
- The stated life expectancy of each consumable is based on specific operating conditions such as page coverage for a particular page size (5% coverage of A4). The actual life of each consumable will vary depending on use and other printing variables including page coverage, page size, media type, continuous or intermittent printing, ambient temperature and humidity.
- Some of the product illustrations contain optional accessories.
- Specifications and accessories are based on the information available at the time of printing and are subject to change without notice.
- DEVELOP does not warrant that any specifications mentioned will be error-free.
- All brand and product names may be registered trademarks or trademarks of their respective holders and are hereby acknowledged.
Επιπλέον πληροφορίες
Χρώμα Εκτύπωσης | Έγχρωμη Εκτύπωση |
---|---|
Διάσταση Χαρτιού | 330 χ 487 |
Κατασκευαστής | Develop |
Παραγωγική Ικανότητα | Από 200.000 Σελίδες / Έτος και άνω |
Ταχύτητα Εκτύπωσης | Από 76 Σελίδες / Λεπτό και άνω |
